Integrate Ethernet Signal and Radio Frequency Rotary Joint for Low Temperature Environment

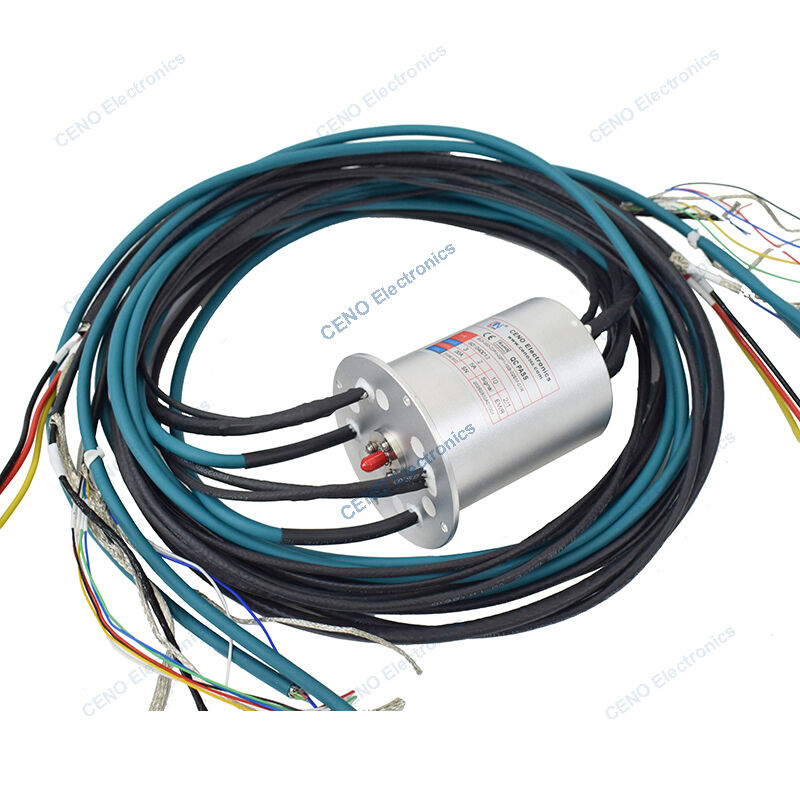

ECN000-03P4-02P1-10S-02EM-01R is CENO integrate slip ring combine Electric Power, Ethernet signal and RF Rotary Joint for radar system or satellite earth station. CENO integrate series of slip ring is non-standard customized, optional circuits, current, voltage and RF rotary joint for different applications. It can be highly integrated with various transmission modules to form a multi-functional rotary connection solution. For more information please contact us
Specification
|
ECN000-03P4-02P1-10S-02EM-01R Specification |
|
|
Current & Circuits |
3 * 20A; 2 * 5A; 6 * Signal; 1*RS422; 2 * Ethernet Signal |
|
Rating Voltage |
0 ~ 220 VAC/VDC |
|
Dielectric strength |
≥1500VAC@50Hz; ≥500VAC@50Hz |
|
Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@100VDC |
|
Contact resistance wave |
≤ 30mΩ |
|
Working temperature |
-40°C~+80°C |
|
Working humidity |
60 %RH |
|
IP protection grade |
IP51 |
|
Operating speed |
0~300rpm |
|
Outer diameter |
Ø76mm |
|
Contact material |
Precious Metal; Gold to Gold |
|
Housing material |
Aluminium Alloy |
|
RF |
Parameters |
|
Frequency rage |
DC-4.5GH |
|
Connect type |
SMA-F(50Ω) |
|
Insert loss |
≤0.3dB |
|
Insert loss range |
≤0.05dB |
|
WSR |
≤1.25 |
|
WSR C |
≤0.05 |
|
Peak power |
100W @DC - 2GHz |
Features
u Integrated design combine Ethernet, Power & RF Rotary Joint
u Stable transmitting, no string code, can be integrate various signal /data
u Install easy & Free maintenance
Applications
u Automatic machine
u Radar antenna
u Electronic warfare system
u Satellite earth station
u Medical equipment
Optional
u Circuit, Voltage, Current
u Channels ! frequency range
u Contact / Housing Materials
u Protection grade
Working speed & temperature
Outline drawing
