| สถานที่กำเนิด | จีน |
| ชื่อแบรนด์ | CENO |
| ได้รับการรับรอง | CE,RoHS,ISO9001,UL |
| หมายเลขรุ่น | ECN005-02P3-03S-02EM-A |

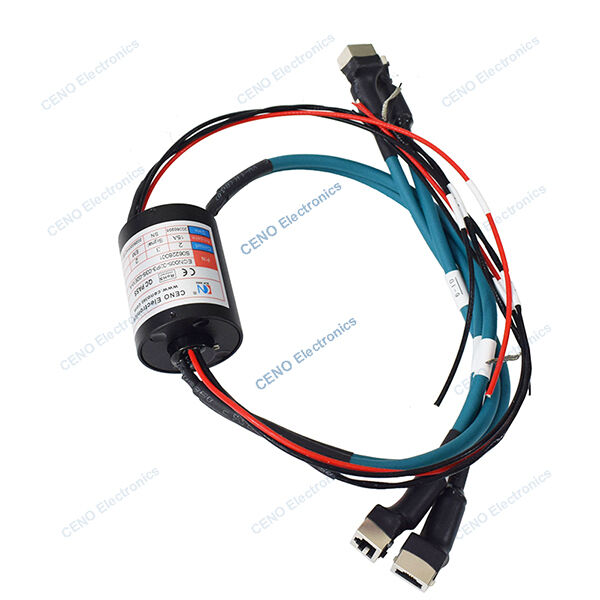

Through Hole Ethernet Signal Slip Ring with Electric Power for Industry Robotic
ECN005-02P3-03S-02EM-A is CENO Ethernet Signal Slip Ring with Electric Power and through hole structure. Ceno’s Ethernet slip ring solution have been developed to provide reliable products to allow transfer of the Ethernet protocol through a rotating interface. The innovative designs meet the challenge of matching impedance, controlling crosstalk and managing loss. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your need.
Specification
| ECN005-02P3-03S-02EM-A Specification | |
| Current & Circuits | 2 * 15A; 1 * RS485; 2 * 100M Ethernet |
| Rating Voltage | 0 ~ 24 VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~60rpm |
| Inner diameter | Ø5mm |
| Outer diameter | Ø180mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Features
1. Through hole 3mm-980mm optional
2 Circuits 1 - 300 circuits are option
3 Stable transmitting, no string code, can be integrate various signal /data
4 Install easy & Free maintenance
Applications
1 Automatic machine
2 Turntable testing machine
3 Packing equipment
4 Filling machinery
5 Medical equipment
Optional
1 Circuit, Voltage, Current
2 Signals and data
3 Contact / Housing Materials
4 Protection grade
5 Working speed & temperature
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
