Ethernet Slip Ring
>
|
|
| สถานที่กำเนิด | จีน |
| ชื่อแบรนด์ | CENO |
| ได้รับการรับรอง | CE,RoHS,ISO9001,UL |
| หมายเลขรุ่น | ACN30-14P1-04S-01EG-B |

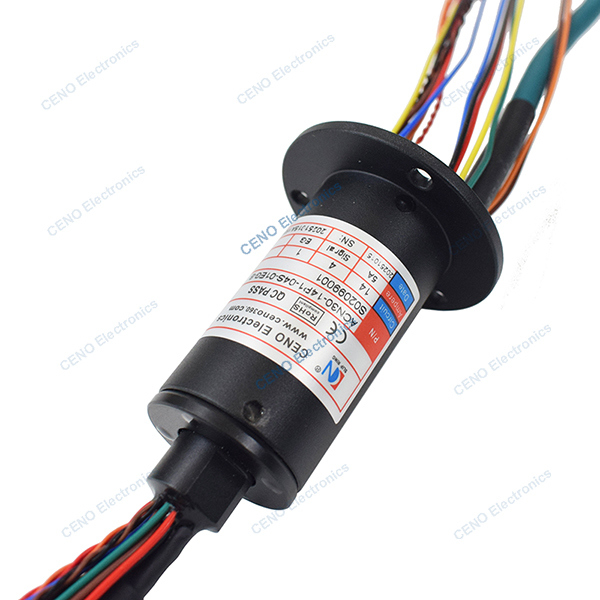

Electric Power and Ethernet Signal Slip Ring combine with RS422 for Industry
ACN30-14P1-04S-01EG-B is CENO capsule slip ring combine electric power, RS422 and Ethernet signal for industry and automatic machine. CENO Ethernet signal slip ring solutions have been developed to provide reliable products to allow transfer Ethernet protocol through a rotating interface. This designs meet the challenge of matching impedance, controlling crosstalk and managing loss. A wide range of product solutions are offered with combined power in multiple mechanical configurations to meet your application.
Features
Applications
Optional
Specification
| ACN30-14P1-04S-01EG-B Specification | |
| Current & Circuits | 14 * 5A; 1 * RS422; 1 * 1000M Ethernet |
| Rating Voltage | 0 ~ 28 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz; ≥100VAC@50Hz |
| Isolation resistance | ≥100MΩ@500VDC; ≥10MΩ@100VDC |
| Contact resistance wave | ≤ 35mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø30mm |
| Contact material | Precious Metal / Gold to gold |
| Housing material | Aluminium Alloy |
| Rotation way | Flange installation |
| Lead wire length | As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
