| สถานที่กำเนิด | จีน |
| ชื่อแบรนด์ | CENO |
| ได้รับการรับรอง | CE,RoHS,ISO9001,UL |
| หมายเลขรุ่น | ECN095-08S |

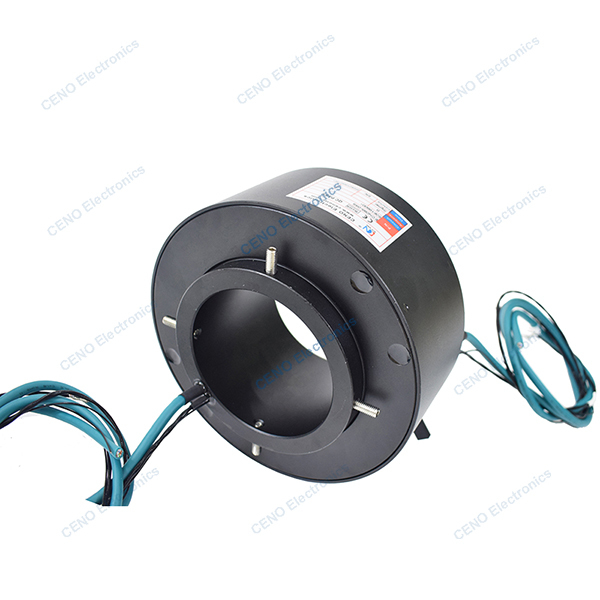

Through Bore Industrial Slip Ring with Electric Power and CANBus Signal
ECN095-08S is CENO industry slip ring have through hole in center and combine circuits signal and one channel CANBUS signal, that is designed for industrial system. Through hole is a kind of classical design for easy and firmly installed on the rotation main shaft by screws, the other side installed by anti-rotation tab on machine stator side. Slip ring continuous rotating and transmitting signal and power from one side to other side. For more information please contact us.
Specification
|
ECN095-08S |
Specification |
| Current & Circuits | 1 * CanBus; 1 * Signal; 4 * Signal |
| Rating Voltage | 0 ~ 24 VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~50rpm |
| Inner diameter | Ø95mm |
| Outer diameter | Ø185mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Rotation way | Fix up stator side with anti-rotation tab |
| Lead wire length | As customized |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
